Phase 00 · Foundation N 30°16′ · W 97°44′ · Bury 48″

The plumbing that goes in before the walls go up.

Wells, water service lines, trunk mains, manifolds and rough-in. We work directly with general contractors and custom home builders — ground broken to pressure test, on schedule, code-stamped.

Reserve a slot See the schematic
Build phases

Ground-up, in six stages.

We arrive after the slab is staked and leave after the inspector has stamped the rough-in. Every Trunkline build moves through the same six checkpoints — coordinated with your GC, the framer, and the inspector.

  1. 01

    Excavation

    Day 1 — 2

    Trench survey, depth check, locate paint. We cut to 48″ in clay, 42″ in sand.

  2. 02

    Well & pit

    Day 2 — 5

    Submersible pump set, casing capped, expansion tank staged in the utility cavity.

  3. 03

    Service line

    Day 5 — 7

    HDPE pulled from meter pit to slab stub-up, tracer wire run, pressure-soaped.

  4. 04

    Trunk mains

    Day 7 — 10

    PEX-A trunks set in-slab on dobies, sleeved at every penetration, marked.

  5. 05

    Rough-in

    Day 10 — 16

    Branch home-runs to manifold, vent stack and DWV set in the framed cavities.

  6. 06

    Pressure test

    Day 16 — 17

    System pressurized to 100 psi for 24 hours. Inspector signs. We move out.

System schematic

What we put under, around
and through the house.

Standard single-storey, well-fed build · drawn to scale: ½″ = 1′ · plot view

GRADE 0″ SLAB · 4″ POURED · WIRE MESH WATER TABLE Wellhead CASING 6″ · PUMP 280′ Service line HDPE DR-9 · 1¼″ ID Meter pit SHUTOFF + BACKFLOW Slab stub-up SLEEVED · SEALED · MARKED PEX-A manifold 14-PORT · ISO VALVES Branch home-run ½″ PEX-A · UNINTERRUPTED Fixture stub-out CAPPED · LABELED · TESTED BURY 48″
Pressurized water line Aquifer / water table Structure / slab
Spec sheet

What goes in, by material.

Every Trunkline build is itemized by SKU before the trench opens. No surprise substitutions, no off-spec joints, no “equivalent” fittings on the truck.

Material Where it runs ID Depth / location Rated Warranty
PEX-A Trunk & branch home-runs ⅜″ – 1″ In-slab on dobies / wall cavity 200 psi · 180°F 25 yr
Type-L Copper Above-grade mains, manifold trunks ¾″ – 2″ Mechanical room, exposed runs 250 psi · 250°F 50 yr
HDPE DR-9 Buried service line, well-to-meter 1″ – 2″ Buried 48″ · tracer wire 200 psi · 73°F 50 yr
CPVC Hot-water risers, retrofit branches ½″ – 1″ Wall cavity · sleeved at slab 100 psi · 180°F 20 yr
PVC SCH-40 DWV stack, vent, slab waste 2″ – 4″ Slab penetrations, vent through roof Drainage 50 yr
Cast brass Stop valves, manifold ports, bibs ¼ turn Every fixture · every branch 600 psi Lifetime

All assemblies installed to UPC 2024 + local AHJ overrides · NSF/ANSI 61 + 372 potable certified · ICC-ES listed fittings only

Recent builds

Six months of ground broken.

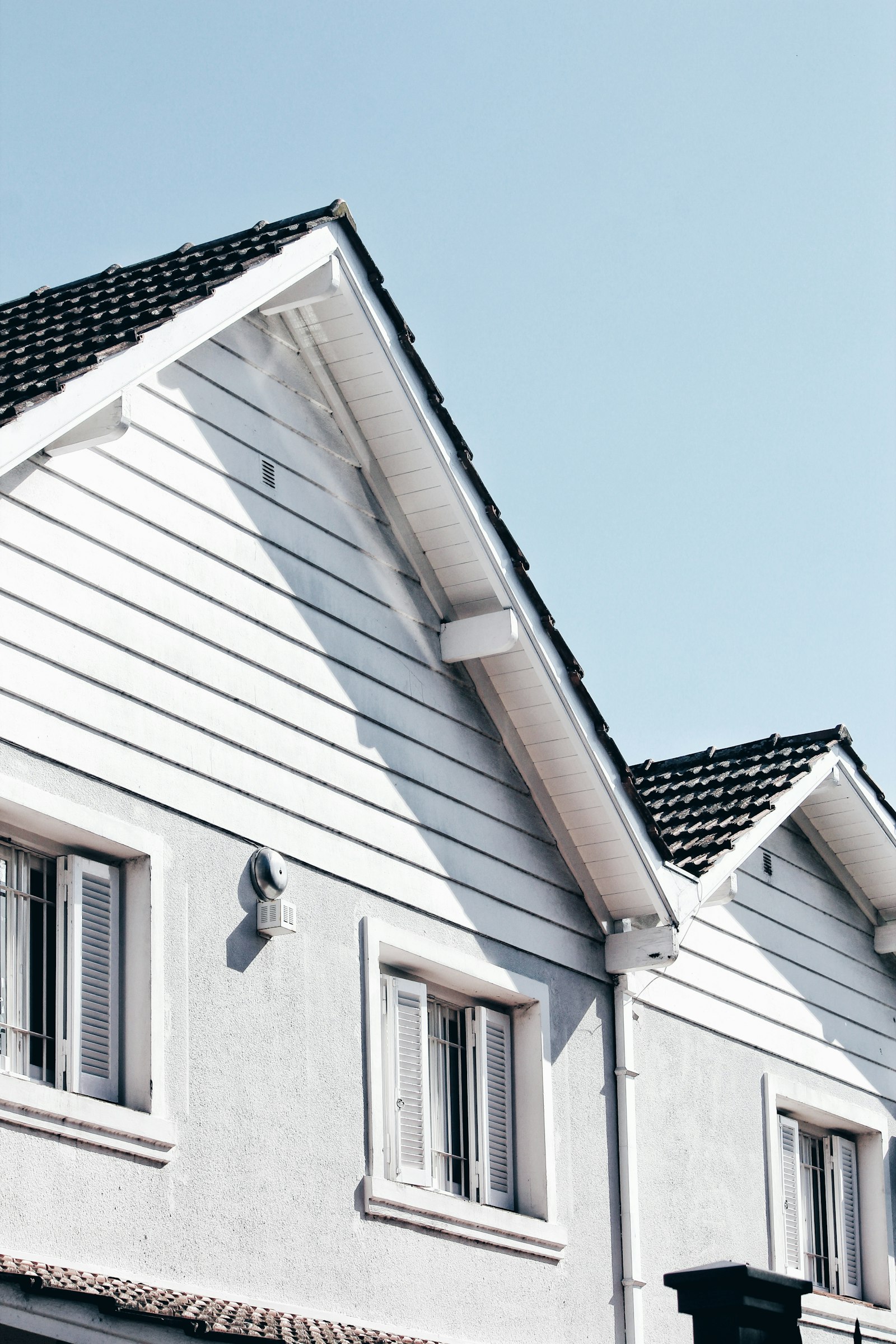

Single-family timber frame on a wooded lot
Custom build · well-fed

Cedar Ridge — 4,200 sqft, well + slab

Greenfield single-family on a 1.4-acre wooded lot. Drilled to 312 ft for static water, ran 480 ft of HDPE service line under a gravel drive, set a 14-port manifold in the utility cavity. Came in three days under the framer's schedule.

  • Well depth312 ft · 9 gpm
  • Service line480 ft HDPE 1¼″
  • Fixtures22 (full house)
  • Pressure test24 hr · 100 psi · 0 drop
Modern flat-roofed home under construction at dusk
Production lot · city water

Maple Run — 18-unit subdivision rough-in

Eighteen identical production homes on a single arterial main. We pre-built the manifolds in-shop, dropped one per slab on schedule, and ran the entire subdivision rough-in inside six weeks with two crews rotating.

  • Service tap2″ city main · 18 stubs
  • Trunks5,400 ft PEX-A in-slab
  • Manifolds18 × 12-port (shop-built)
  • First-occupancy114 days from groundbreak
Concrete and timber two-story house on a rural lot
Off-grid · cistern + well

Hollow Creek — off-grid homestead

Two-acre off-grid build with a 2,500-gallon buried cistern, dual-pump well, UV + sediment treatment train and 16 zones home-run to a custom brass manifold. Everything on a 24V solar pump controller, no city tap on site.

  • Cistern2,500 gal poly · buried
  • Well418 ft · 24V submersible
  • TreatmentUV + 5µ sediment + softener
  • Manifold16-port cast brass
By the foot

What 11 years on the ground looks like.

  1. 184,000ft of service line buried · 12 states
  2. 612 new builds finished & signed
  3. 0 callbacks under 12-month warranty (2025 cohort)
  4. 4,287days since a zero-pressure-drop streak began
Stamped, listed, registered
  • UPC 2024 Uniform Plumbing Code
  • NSF 61 Potable water · ANSI listed
  • ICC-ES Evaluation Service report 5114
  • PHCC Member contractor · 2014
  • WaterSense EPA partner · fixture-trained
  • MP-41217 Master plumber · Texas RMP
Q3 booking · 4 slots remaining

Lock a slot before the framer arrives.

We accept builds 90 days out and confirm crews 30 days before groundbreak. Drop the plot survey and a rough timeline and we'll quote material + labor inside three working days.

  • 1 · Plot survey PDF or DXF · we'll confirm well placement and trench route
  • 2 · Fixture count Architect's drawing or a sketch · we size the manifold from it
  • 3 · GC contact Whoever's running the framing schedule · we coordinate direct
